Powered by Universal Speech Solutions LLC

MRCP

Deb Installation Manual

Administrator Guide



Revision: 67

Created: February 7, 2015

Last updated: March 18, 2017

Author: Arsen Chaloyan




Table of Contents

1 Overview.. 3

1.1 Applicable Versions. 3

1.2 Supported Distributions. 3

1.3 Authentication. 3

2 Installing Deb Packages Using Apt-Get 4

2.1 Repository Configuration. 4

2.2 GnuPG Key. 4

2.3 Repository Update. 4

2.4 UniMRCP Client Installation. 4

2.5 UniMRCP Server Installation. 5

3 Installing Deb Packages Manually. 6

3.1 Package List 6

3.2 Package Dependency Graph. 7

3.3 Package Installation Order 7






1       Overview

This guide describes how to obtain and install UniMRCP binary packages on Debian-based Linux distributions. The document is intended for system administrators and developers.

1.1      Applicable Versions

Instructions provided in this guide are applicable to the following versions.



UniMRCP 1.4.0 and above

1.2      Supported Distributions

UniMRCP deb packages are currently available only for x86_64 (64-bit) architecture.



Operating System

32-bit

64-bit

Ubuntu 14.04 LTS (trusty)




Ubuntu 16.04 LTS (xenial)






Note: packages for other distributions can be made available upon request. For more information, contact services@unimrcp.org.

1.3      Authentication

UniMRCP binary packages are available to authenticated users only. In order to register a free account with UniMRCP, please visit the following page.



https://www.unimrcp.org/profile-registration



Note: a new account needs to be verified and activated prior further proceeding.

2       Installing Deb Packages Using Apt-Get

Using the APT package handling utility (apt-get) is recommended for installation of UniMRCP binary packages.

2.1      Repository Configuration

The content of a typical configuration file of the APT repository, to be placed in /etc/apt/sources.list.d/unimrcp.list, is provided below.



deb [arch=amd64] https://username:password@unimrcp.org/repo/apt/ distr main



The username and password fields included in the HTTPS URI must be replaced with the corresponding account credentials.

The distr field must be replaced with the corresponding distribution code name such as trusty, xenial, etc.

2.2      GnuPG Key

For verification of binary packages, UniMRCP provides a public GnuPG key, which can be retrieved and installed as follows.



wget -O - https://unimrcp.org/keys/unimrcp-gpg-key.public | sudo apt-key add -



2.3      Repository Update

In order to check for updates and apply the changes in the APT configuration, use the following command.



sudo apt-get update



2.4      UniMRCP Client Installation

In order to install the UniMRCP client binaries, including the dependencies, the following command can be used.



sudo apt-get install unimrcp-client



As a result, apt-get will check and prompt to download all the required packages by installing them in the directory /opt/unimrcp.



Similarly, for installation of development kit(s), the UniMRCP client libraries and header files, the following command may follow.



sudo apt-get install unimrcp-client-dev



2.5      UniMRCP Server Installation

In order to install the UniMRCP server binaries, including the dependencies, the following command can be used.



sudo apt-get install unimrcp-server



As a result, apt-get will check and prompt to download all the required packages by installing them in the directory /opt/unimrcp.



Similarly, for installation of development kit(s), the UniMRCP server libraries and header files, the following command may follow.



sudo apt-get install unimrcp-server-dev



In order to install a package containing a set of demo plugins to the UniMRCP server, the following command can be used.



sudo apt-get install unimrcp-demo-plugins






3       Installing Deb Packages Manually

UniMRCP deb packages can be installed manually using the dpkg utility. Note, however, that the system administrator should take care of package dependencies and install all the packages in appropriate order.



The deb packages have the following naming convention:



$packagename_$universion-$distr_$arch.deb



where

         packagename is the name of a package

         universion is the UniMRCP version

         distr is the distribution code name (trusty, xenial, )

         arch is the architecture (amd64, i386, all, )

3.1      Package List

The following is a complete list of deb packages UniMRCP provides.



Package Name

Description

unimrcp-client

Shared libraries and sample applications of the client.

unimrcp-client-dev

Development kit of the client.

unimrcp-server

Shared library and application of the server.

unimrcp-server-dev

Development kit of the server.

unimrcp-demo-plugins

Set of demo plugins to the server. [Optional]

unimrcp-common

Data common for the client and the server.

unimrcp-common-dev

Development kit of the common client and server data.

uniapr

UniMRCP edition of the Apache Portable Runtime (APR) library.

uniapr-dev

Development kit of the corresponding APR library.

uniapr-util

UniMRCP edition of the Apache Portable Runtime Utility (APR-Util) library.

uniapr-util-dev

Development kit of the corresponding APR-Util library.

unisofia-sip

UniMRCP edition of the Sofia SIP library.

unisofia-sip-dev

Development kit of the corresponding Sofia SIP library.

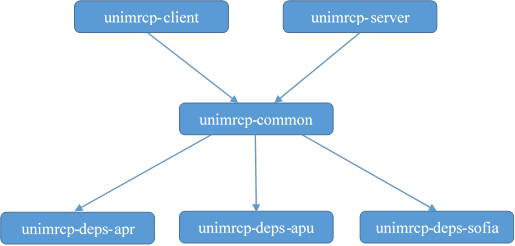

3.2      Package Dependency Graph

The following is a graph of package dependencies.




































3.3      Package Installation Order

Packages for the APR, APR-Util and Sofia-SIP libraries must be installed first.



sudo dpkg --install uniapr_$aprversion-$distr_$arch.deb

sudo dpkg --install uniapr-util_$apuversion-$distr_$arch.deb

sudo dpkg --install unisofia-sip_$sofiaversion-$distr_$arch.deb



Then, a package containing common data for the client and the server should follow.



sudo dpkg --install unimrcp-common_$universion-$distr_$arch.deb



Based on your requirements, either a client package, or a server package, or both of them can be installed next.



sudo dpkg --install unimrcp-client_$universion-$distr_$arch.deb

sudo dpkg --install unimrcp-server_$universion-$distr_$arch.deb



Optionally, a package containing a set of demo plugins to the server may follow.



sudo dpkg --install unimrcp-demo-plugins_$universion-$distr_$arch.deb



The same order should be considered for the installation of the corresponding development packages.
