Powered by Universal Speech Solutions LLC

 MRCP

RPM Installation Manual

Administrator Guide



Revision: 56

Created: February 7, 2015

Last updated: March 16, 2021

Author: Arsen Chaloyan




Table of Contents



1  Overview.. 3

1.1         Applicable Versions 3

1.2         Supported Distributions. 3

1.3         Authentication. 3

2  Installing RPMs Using YUM.. 4

2.1         Repository Configuration. 4

2.2         Repository Verification. 4

2.3         UniMRCP Client Installation. 5

2.4         UniMRCP Server Installation. 5

3  Installing RPMs Manually. 6

3.1         Package List 6

3.2         Package Dependency Graph. 7

3.3         Package Installation Order 7

4  System Daemon. 9

4.1         Starting Daemon. 9

4.2         Stopping Daemon. 9

4.3         Retrieving Daemon Status. 9

4.4         Setting Auto-start on Next Boot 9






1       Overview

This guide describes how to obtain and install UniMRCP binary packages on Red Hat-based Linux distributions. The document is intended for system administrators and developers.

1.1      Applicable Versions

Instructions provided in this guide are applicable to the following versions.



UniMRCP 1.4.0 and above

1.2      Supported Distributions

UniMRCP RPMs are currently available for x86_64 (64-bit) architecture only.



Operating System

Released

End of Support

Red Hat / Cent OS 6

February 2017

August 2018

Red Hat / Cent OS 7

March 2017

TBA

Red Hat / Cent OS 8

January 2021

TBA



Note: packages for other distributions can be made available upon request. For more information, contact services@unimrcp.org.

1.3      Authentication

UniMRCP binary packages are available to authenticated users only. In order to register a free account with UniMRCP, please visit the following page.



https://www.unimrcp.org/profile-registration



Note: a new account needs to be verified and activated prior further proceeding.



2       Installing RPMs Using YUM

Using the Yellowdog Updater, Modifier (yum), a command-line package management utility for Red Hat-based distributions, is recommended for installation of UniMRCP binary packages.

2.1      Repository Configuration

The content of a typical yum configuration file, to be placed in /etc/yum.repos.d/unimrcp.repo, is provided below.



[unimrcp]

name=UniMRCP Packages for Red Hat / Cent OS-$releasever $basearch

baseurl=https://username:password@unimrcp.org/repo/yum/main/rhel$releasever/$basearch/

enabled=1

sslverify=1

gpgcheck=1

gpgkey=https://unimrcp.org/keys/unimrcp-gpg-key.public



The username and password fields included in the HTTPS URI must be replaced with the corresponding account credentials.

2.2      Repository Verification

In order to verify that yum can properly connect and access the UniMRCP repository, the following command can be used.



yum repolist unimrcp



where unimrcp is a name of the section set in the yum configuration file above.



In order to retrieve a list of packages the UniMRCP repository provides, the following command can be used.



yum --disablerepo="*" --enablerepo="unimrcp" list available









2.3      UniMRCP Client Installation

In order to install the UniMRCP client binaries, including the dependencies, the following command can be used.



yum install unimrcp-client



As a result, yum will check and prompt to download all the required packages by installing them in the directory /opt/unimrcp.



Similarly, for installation of development kit(s), the UniMRCP client libraries and header files, the following command may follow.



yum install unimrcp-client-devel



2.4      UniMRCP Server Installation

In order to install the UniMRCP server binaries, including the dependencies, the following command can be used.



yum install unimrcp-server



As a result, yum will check and prompt to download all the required packages by installing them in the directory /opt/unimrcp.



Similarly, for installation of development kit(s), the UniMRCP server libraries and header files, the following command may follow.



yum install unimrcp-server-devel



In order to install a package containing a set of demo plugins to the UniMRCP server, the following command can be used.



yum install unimrcp-demo-plugins






3       Installing RPMs Manually

UniMRCP RPM packages can be installed manually using the rpm utility. Note, however, that the system administrator should take care of package dependencies and install all the packages in appropriate order.



The RPM packages have the following naming convention:



$packagename-$universion-$packageversion.el$rhelversion.$arch.rpm



where

·         packagename is the name of a package

·         universion is the UniMRCP version

·         packageversion is the RPM release version

·         rhelversion is the Red Hat version

·         arch is the architecture (x86_64, i686, …)

3.1      Package List

The following is a complete list of RPM packages UniMRCP provides.



Package Name

Description

unimrcp-client

Shared libraries and sample applications of the client.

unimrcp-client-devel

Development kit of the client.

unimrcp-server

Shared library and application of the server.

unimrcp-server-devel

Development kit of the server.

unimrcp-demo-plugins

Set of demo plugins to the server. [Optional]

unimrcp-common

Data common for the client and the server.

unimrcp-common-devel

Development kit of the common client and server data.

uniapr

UniMRCP edition of the Apache Portable Runtime (APR) library.

uniapr-devel

Development kit of the corresponding APR library.

uniapr-util

UniMRCP edition of the Apache Portable Runtime Utility (APR-Util) library.

uniapr-util-devel

Development kit of the corresponding APR-Util library.

unisofia-sip

UniMRCP edition of the Sofia SIP library.

unisofia-sip-devel

Development kit of the corresponding Sofia SIP library.

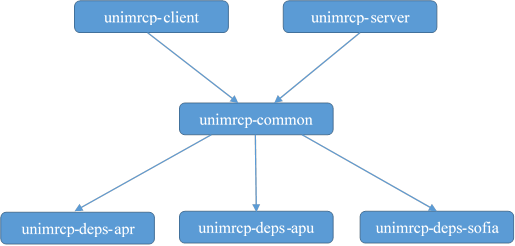

3.2      Package Dependency Graph

The following is a graph of package dependencies.




































3.3      Package Installation Order

Note that all the RPM packages provided by UniMRCP are signed by a GNU Privacy Guard (GPG) key. Before starting the installation, you may need to import the public key in order to allow the rpm utility to verify the packages.



rpm --import https://unimrcp.org/keys/unimrcp-gpg-key.public





Packages for the APR, APR-Util and Sofia-SIP libraries must be installed first.



rpm -ivh uniapr-$aprversion-$packageversion.el$rhelversion.$arch.rpm

rpm -ivh uniapr-util-$apuversion-$packageversion.el$rhelversion.$arch.rpm

rpm -ivh unisofia-sip-$sofiaversion-$packageversion.el$rhelversion.$arch.rpm



Then, a package containing common data for the client and the server should follow.



rpm -ivh unimrcp-common-$universion-$packageversion.el$rhelversion.$arch.rpm



Based on your requirements, either a client package, or a server package, or both of them can be installed next.



rpm -ivh unimrcp-client-$universion-$packageversion.el$rhelversion.$arch.rpm

rpm -ivh unimrcp-server-$universion-$packageversion.el$rhelversion.$arch.rpm



Optionally, a package containing a set of demo plugins to the server may follow.



rpm -ivh unimrcp-demo-plugins-$universion-$packageversion.el$rhelversion.$arch.rpm



The same order should be considered for the installation of the corresponding development packages.

4       System Daemon

This section outlines how to start/stop the UniMRCP server as a daemon, and applies to 1.5.0 and above.



Upon installation of the UniMRCP server package, a systemd unit file unimrcp.service is installed in the directory /usr/lib/systemd/system and can be used as follows.

4.1      Starting Daemon



systemctl start unimrcp.service



4.2      Stopping Daemon



systemctl stop unimrcp.service



4.3      Retrieving Daemon Status



systemctl status unimrcp.service



4.4      Setting Auto-start on Next Boot



systemctl enable unimrcp.service
